2  Data

2.1 Description

2.1.1 How are the data collected and by whom?

We will be using datasets from the U.S. Energy Information Administration (EIA), an agency within the U.S. Department of Energy. The role of the agency is to collect, analyze, and provide access to energy information to the public, industry stakeholders, and policymakers. EIA data is collected through monitoring systems, surveys, and collaboration with industry, state, and federal agencies.

2.1.2 Data format, frequency of updates, dimensions, and other information

We will be using 3 different tables posted on the EIA website with data presented in HTML table format that contains grid reliability metrics of the U.S. Distribution system. These tables are updated annually with the latest data available through 2023. These tables include the following:

• Year: from 2013 to 2023
• Reliability Metrics: SAIDI (System Average Interruption Duration Index), SAIFI (System Average Interruption Frequency Index), and CAIDI (Customer Average Interruption Duration Index).
• States: all US states
• Event type: Categorization of different outage event types

The data is sourced from the EIA’s Form EIA-861, Annual Electric Power Industry Report.

We will also be using an Excel spreadsheet (.xlsx) containing the EIA-860 Annual Electric Generator report. This dataset is also updated annually with the latest release on September 23, 2024, which contains data through 2023. The dataset includes the following:

• Years: 1990 to 2023
• States: All US states
• Fuel Source: what kind of generator (Natural Gas, Coal, Wind, etc.)
• Nameplate Capacity: MW Capacity of each fuel source

2.1.3 Data issues

• Since all data sources used are only at the state level, we will manually create ISO groupings when exploring the second question of our analysis
• We will assume that hydroelectric and nuclear energy provide stable enough renewable integration to be negligible when studying grid reliability, so we will consider only wind and solar throughout our analysis

2.1.4 Importing the data

• The HTML EIA-861 tables can be copy and pasted into Excel documents and the data can be imported into R as a csv.
• The Excel EIA-860 document can be imported into R as a csv.

2.1.5 Data sources

Reliability Metrics of U.S. Distribution System (EIA-861):

• Reliability Metrics of US Distribution System
• Table 11.4. SAIDI values of U.S. distribution system by state
• Table 11.2. Reliability metrics using IEEE of U.S. distribution system by state
• The Environment for Analysis of Geo-Located Energy Information’s Recorded Electricity Outages 2014-2023

EIA-860 Annual Electric Generator Report:

• Historical State Data - U.S. Energy Information Administration (EIA)
• 2023 Renewable Energy Outlook

NOAA Extreme Weather Report:

• Billion-Dollar Weather and Climate Disasters

2.2 Missing value analysis

# Load necessary libraries
suppressPackageStartupMessages(library(ggplot2))
suppressPackageStartupMessages(library(dplyr))
suppressPackageStartupMessages(library(tidyverse))
suppressPackageStartupMessages(library(readr))

# Load data
data1 <- read_csv('Table1.csv', show_col_types = FALSE)
data2 <- read_csv('Table2.csv', show_col_types = FALSE)
data4 <- read_csv('Table4.csv', show_col_types = FALSE)

# Prepare data for missing values plot
data1_plot <- data1 |>
  pivot_longer(cols = -Year) |>
  mutate(Missing = ifelse(is.na(value), 'Yes', 'No')) |>
  mutate(Year = as.character(Year))

data2_plot <- data2 |>
  pivot_longer(cols = -State) |>
  mutate(Missing = ifelse(is.na(value), 'Yes', 'No'))

data4_plot <- data4 |>
  pivot_longer(cols = -State) |>
  mutate(Missing = ifelse(is.na(value), 'Yes', 'No'))

2.2.1 Table 11.1

ggplot(data1_plot, aes(x = name, y = fct_rev(Year), fill = Missing)) +
  geom_tile(color = 'white') +
  scale_fill_viridis_d() +
  labs(title = 'Table 11.1 Missing Values',
       x = 'Column',
       y = 'Year') +
  theme_bw()

Table 11.1 contains “Reliability Metrics of U.S. Distribution System” by year from 2013 to 2023 for multiple reliability metrics and 2 calculation methods. There are no missing values in this table.

2.2.2 Table 11.2

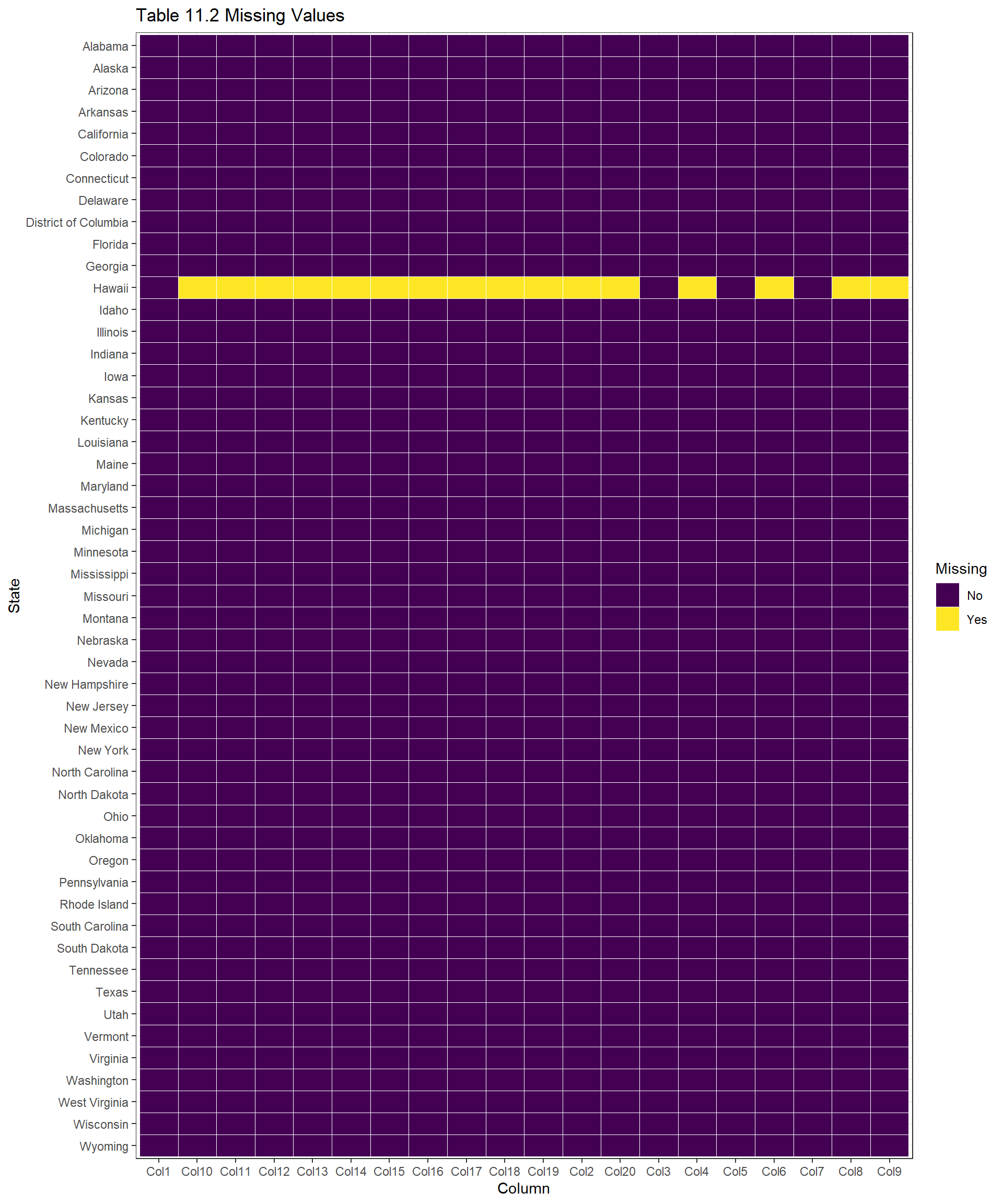

ggplot(data2_plot, aes(x = name, y = fct_rev(State), fill = Missing)) +
  geom_tile(color = 'white') +
  scale_fill_viridis_d() +
  labs(title = 'Table 11.2 Missing Values',
       x = 'Column',
       y = 'State') +
  theme_bw()

Table 11.2 contains “Reliability Metrics Using IEEE of U.S. Distribution System by State” by year for 2022 to 2023 for multiple reliability metrics. The state of Hawaii is missing values for many of these reliability metrics. Hawaii’s grid operates very differently to other states’ grids so we will choose to exclude Hawaii in our analysis, and rather focus on the continental United States (all states excluding Hawaii). All other states have no missing data in this table.

2.2.3 Table 11.4

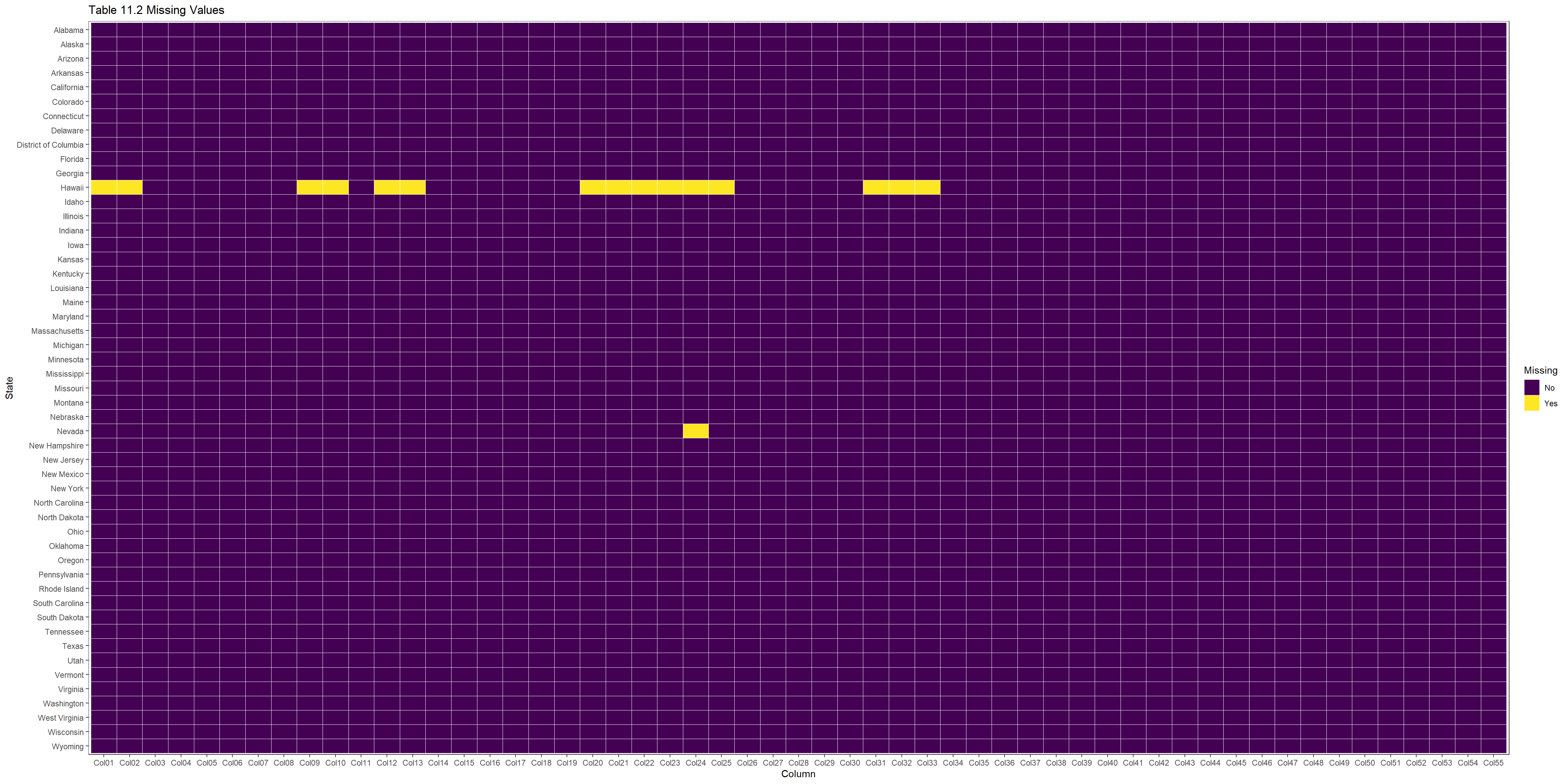

ggplot(data4_plot, aes(x = name, y = fct_rev(State), fill = Missing)) +
  geom_tile(color = 'white') +
  scale_fill_viridis_d() +
  labs(title = 'Table 11.2 Missing Values',
       x = 'Column',
       y = 'State') +
  theme_bw()

Table 11.4 contains “SAIDI Values (Minutes Per Year) of U.S. Distribution System by State, 2013 - 2023” (SAIDI is one specific reliability metric). The state of Hawaii is again missing values for many years of data.We will again choose to exclude Hawaii in our analysis, and rather focus on the continental United States (all states excluding Hawaii). Nevada is missing data for the SAIDI value calculated with “Loss of Supply Removed” in 2014. We are planning on using SAIDI metrics that include “All Events” rather than the “Loss of Supply Removed”, so this missing value does not cause any issues. All other states have no missing data in this table.
